First Power-Up on a new PCB AURIX™ Example

General guidelines to follow when bringing up a new PCB with the AURIX™ microcontroller

LANDING PAGE

Chris Wunderlich

5/7/20251 min read

Before you begin

  • Gather all avaiable documentation
    User’s Manuals
    Data sheets for all the parts on the board
    Understand key parameters (Voltage, Current, Frequency, Impedance…)
    Errata Sheets
    Schematics
    Board Assembly Drawings
    Research applicable Application Notes
    Board layout recommendation

Schematics

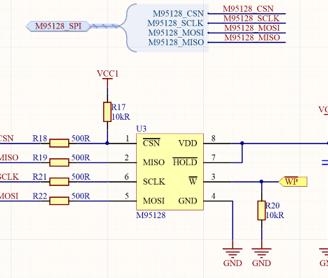

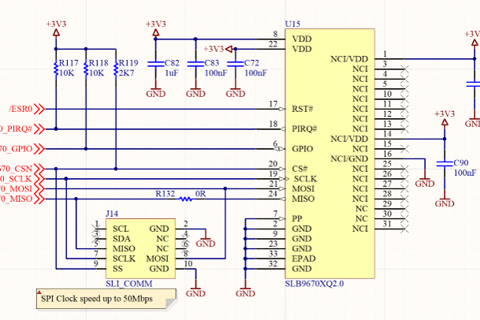

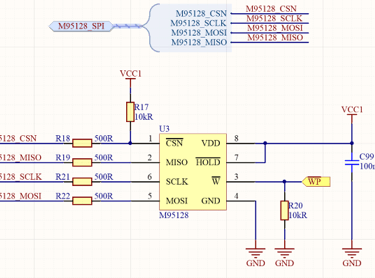

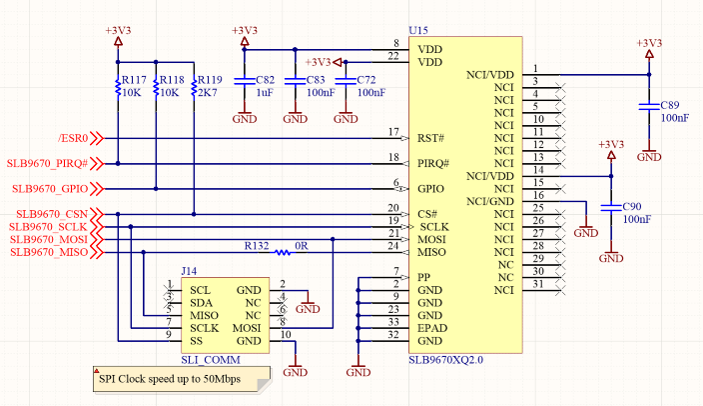

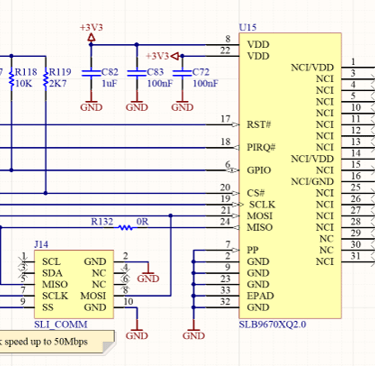

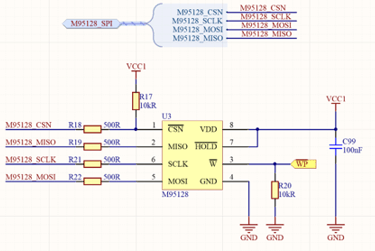

  • Understand the Schematic and how the pins are connected

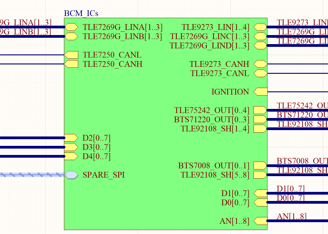

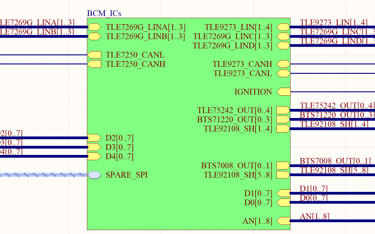

    Hierarchical or Global Nets Schematics layout
